Triobike Boxter-E Brose S Mid-drive Nexus 5 - 4 kids cargo bike

Included;

• 4 kids seat and hood

Shipping and assembly;

• We always ship fully assembled on a pallet

• Unless there is a promotion, a freight cost of $150 to $800 applies depending on your location in Canada

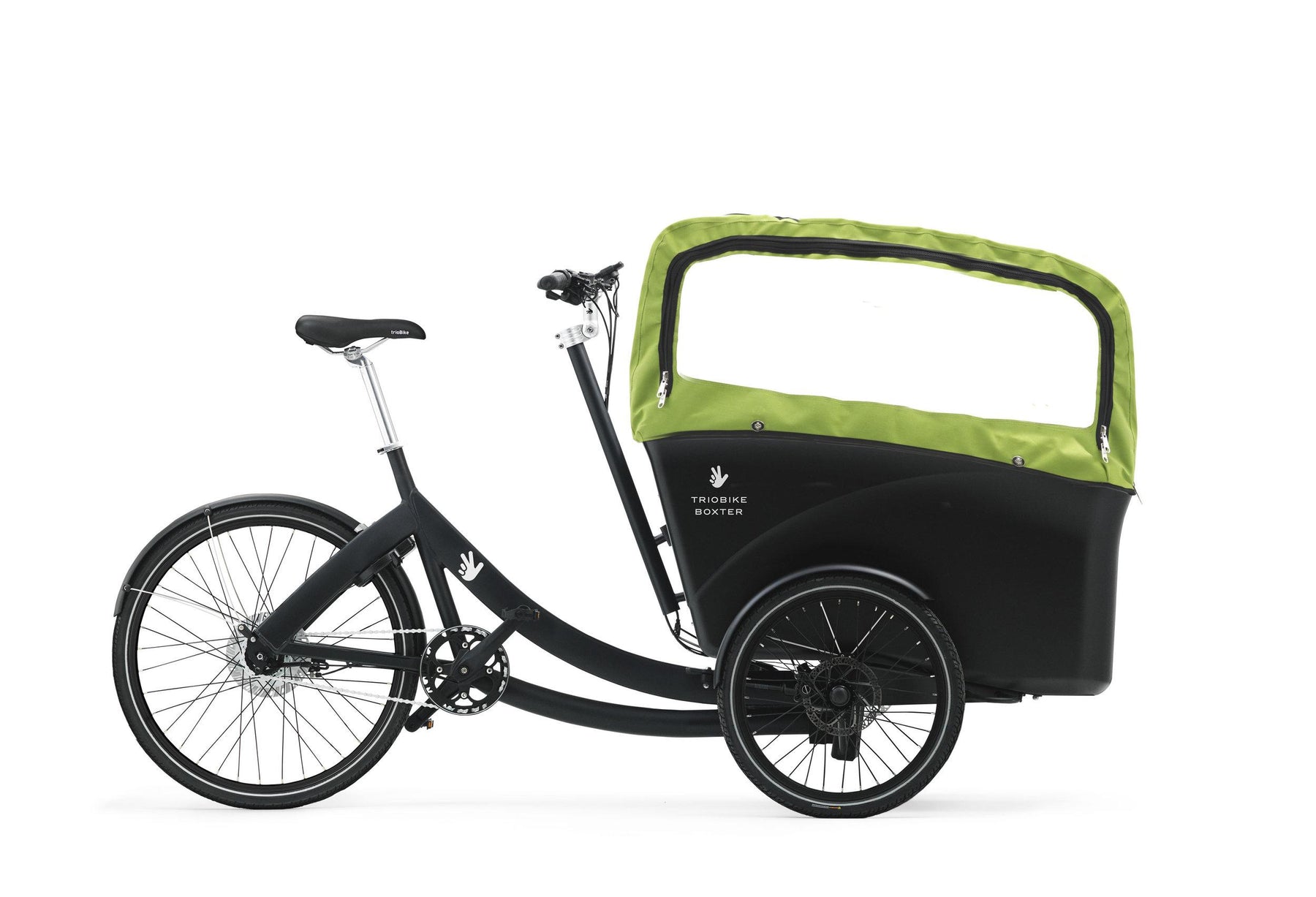

Triobike Boxter-E 4 Kids  Cargo Bike Brose mid drive motor

Triobike boxter E mid drive is equipped with the mighty Brose Drive S e–power system. With a torque of 90 Nm, this motor is powerful, completely silent and as easy to charge as a cell phone. This means that riding up hills on your cargobike, even with the pod fully loaded, is a breeze. With the display on your Triobike boxter E mid drive, you can always keep track of the battery level, distance, speed and even adjust how much help you want from the electric motor. A long trip is no problem. All e-systems provided by Triobike comply with EN 15194 standard, and this model comes with a secure two-year warranty, so you really can relax on the road.

build up

FRAME: aluminium 7005

BOX:
PU foam casted in one piece

REAR WHEEL: 26”

FRONT WHEELS: 20”

dimensions

LENGTH: 218 cm
WIDTH: 91 cm

BOX:
WIDTH: 78 cm, inside 71 cm
LENGTH: 101 cm, inside 97 cm

WEIGHT:
REAR DRIVE VERSION: 41 kg
MID DRIVE VERSION: 40 kg

MAX PAYLOAD ON THE FRONT BOX: 125 kg
OVERALL MAX PAYLOAD: 240 kg

HEIGHT FROM SEAT TO ROOF: 72 CM

components

BRAKES:
Tektro hydraulic disc brakes on front with parking lock

GEARS:
MID DRIVE VERSION:
Shimano Deore 9 speeds
Shimano Nexus 8 speeds
Enviolo CA with Gates Carbon Drive

REAR DRIVE VERSION:
Shimano Deore 9 speeds

SEAT POST:
Ø: 31,6 mm
LENGHT: 450 mm

STEERING DAMPER: one included

SADDLE: triobike gel

CRANKSET: Aluminium

STEM: adjustable

HANDLEBAR
HEIGHT: ground up 117 cm
WIDTH: 65 cm

e-systems

MID DRIVE VERSION:

MOTOR: Brose Drive S | 250W – 90 Nm mid drive motor
DISPLAY: display & remote control included
BATTERY: Li-Ion cells, 36V – 508Wh
E-SYSTEM WARRANTY: 2 years

2-year guarantee

If there are any product faults within the guarantee period of two years (and if the fault is not due too irresponsible handling of the product on your part) then the guarantee is your security for quick assistance free of cost. Bring your invoice and receipt for payment when you contact your dealer or local bike shop. If information on the invoice has been removed or changed, then Triobike reserve the right to deny carrying out the guarantee. The guarantee only applies to errors in the material, shape/design or functionality. The guarantee does not cover periodic control and inspection, repairs or changing of spare parts that have been destroyed due to wrong use or handling of the bicycle. This guarantee does not influence your legal rights. If no legal law is relevant, your rights are restricted to the contents in the guarantee.

Triobike guarantee that your product is without errors in materials, shape and functionality at the time of purchase. You are covered by a 2-year warranty. The warranty is valid when showing the original invoice. The following items are not covered by the warranty: tyres, tubes, spokes, chain and rims.
